Apache Tomcat 8.5.19 – CVE-2017-12617 Exploitation

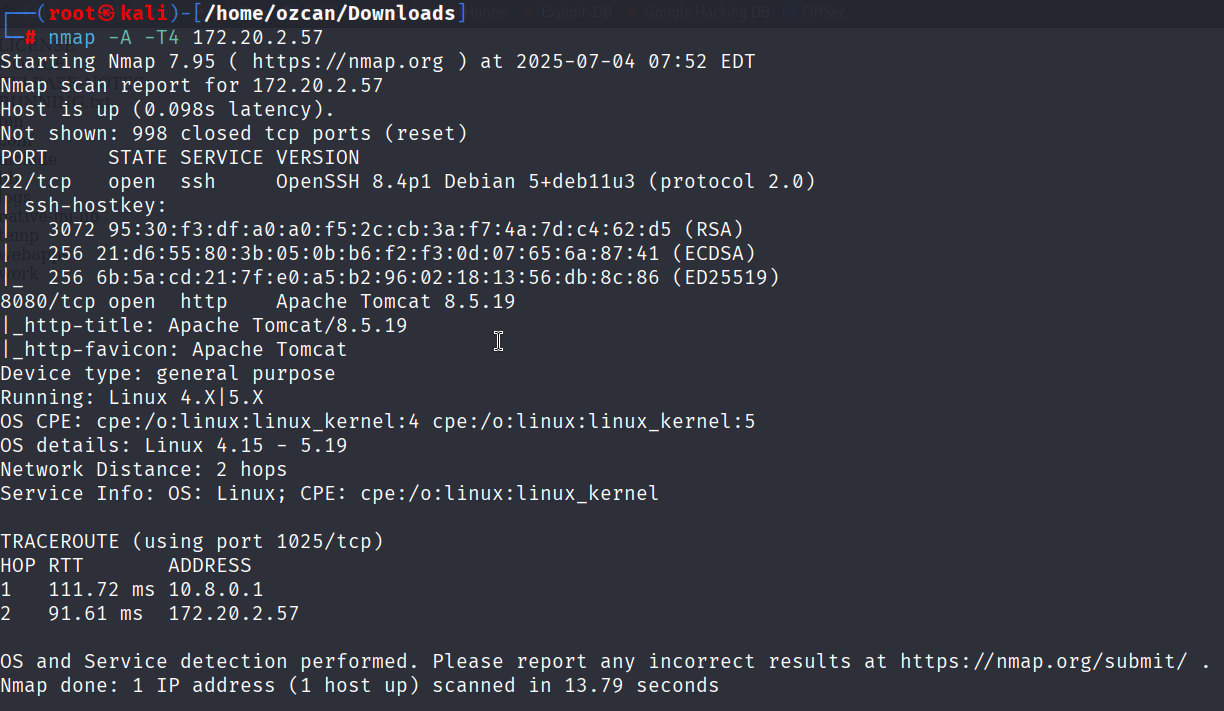

1) Nmap Scan Report

---

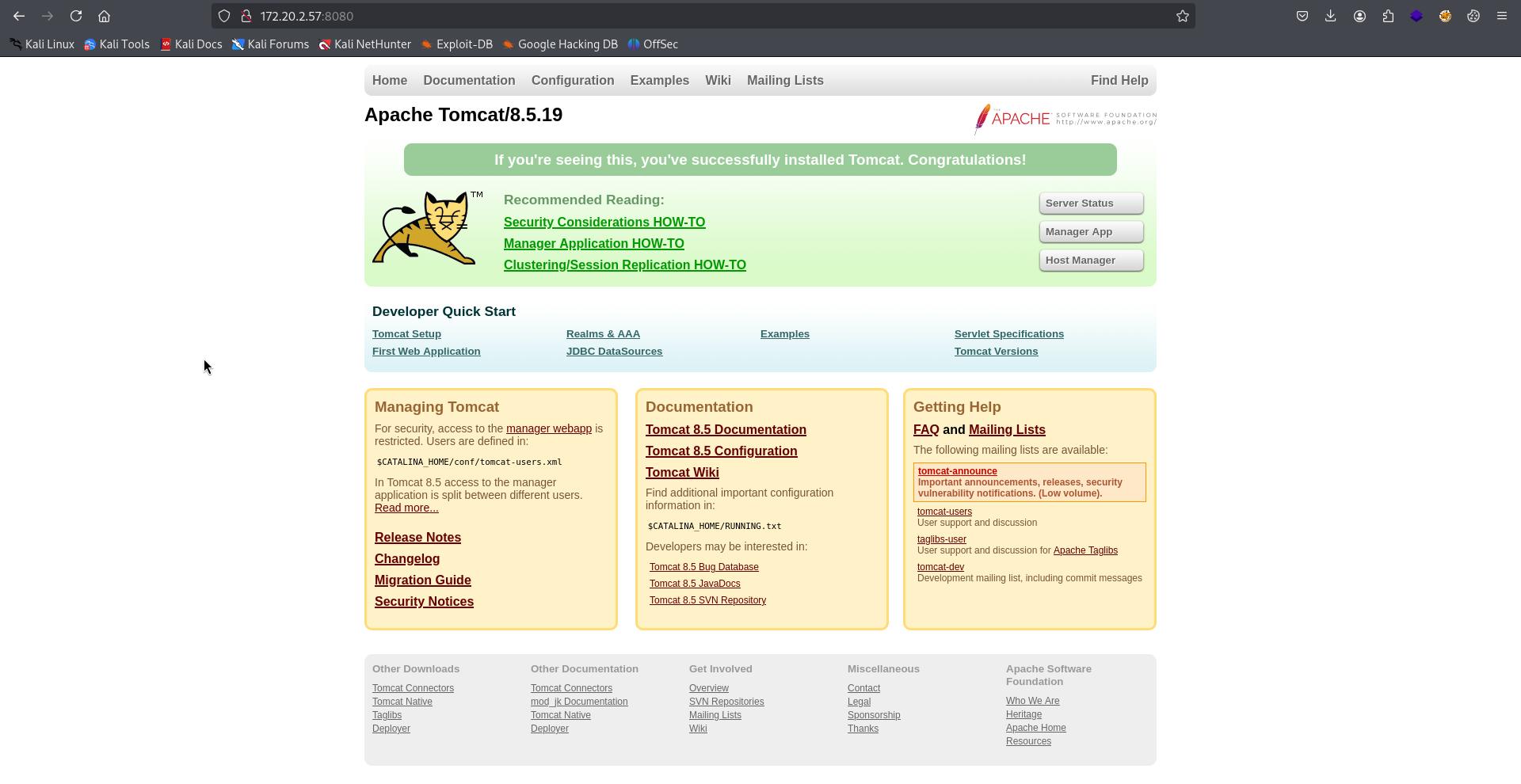

2) Port 8080 – Apache Tomcat 8.5.19

Visiting the Apache Tomcat service running on port 8080.

---

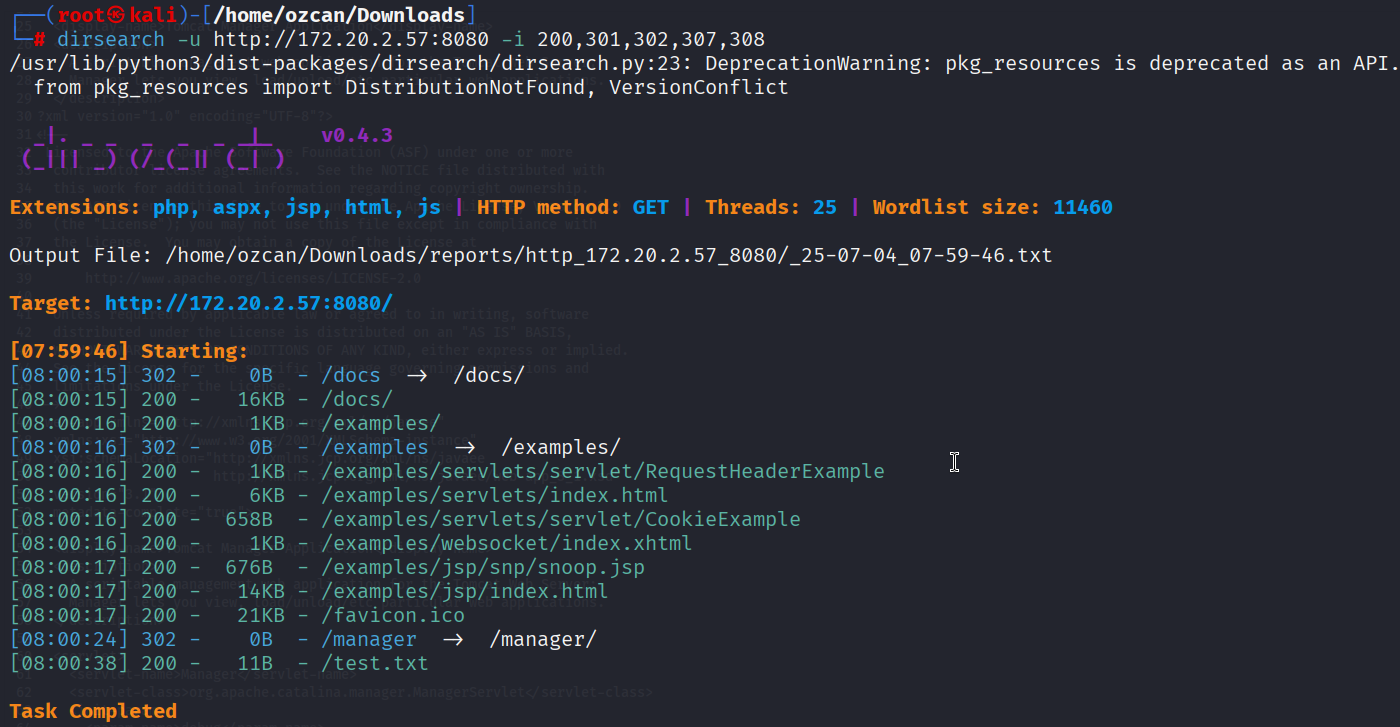

3) Directory Scan

Running a directory scan to discover potential subdirectories.

---

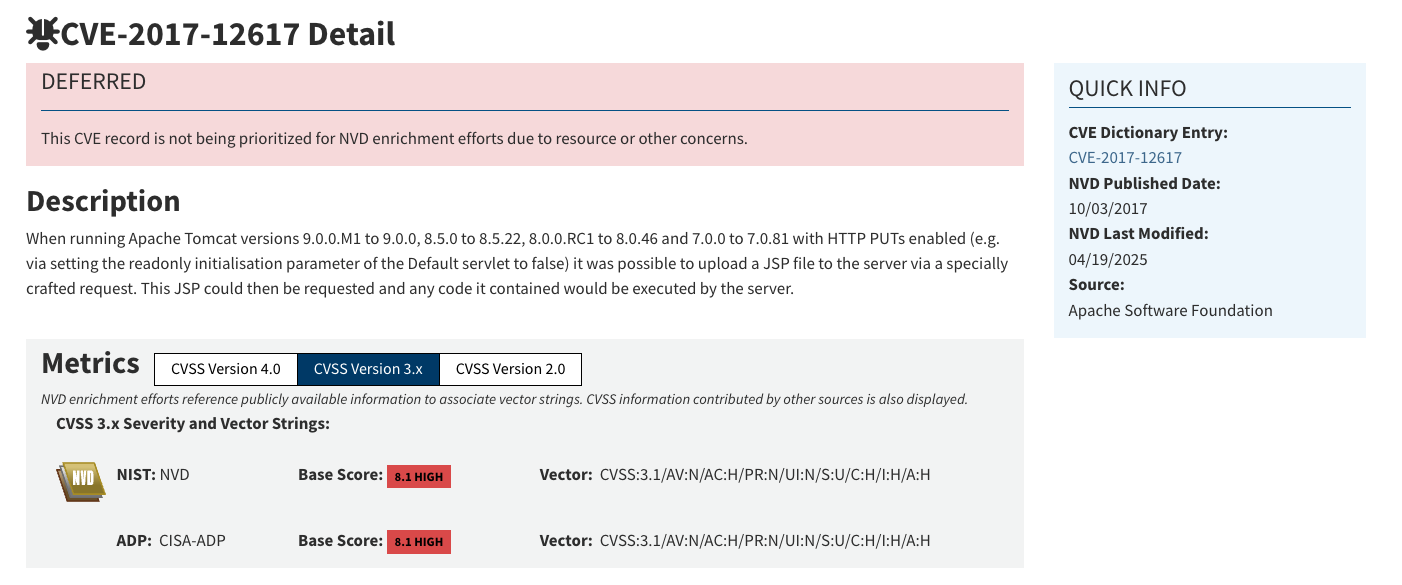

4) Vulnerability Identification – CVE-2017-12617

We see that Apache Tomcat 8.5.19 is affected by CVE-2017-12617, which is exploitable when the readonly parameter is set to false.

---

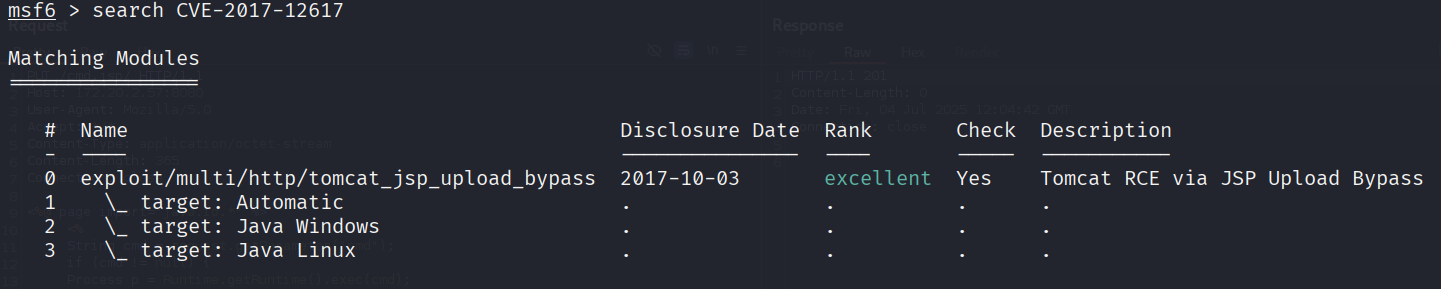

5) Metasploit Framework

A ready-made exploit module for this vulnerability is available within Metasploit.

---

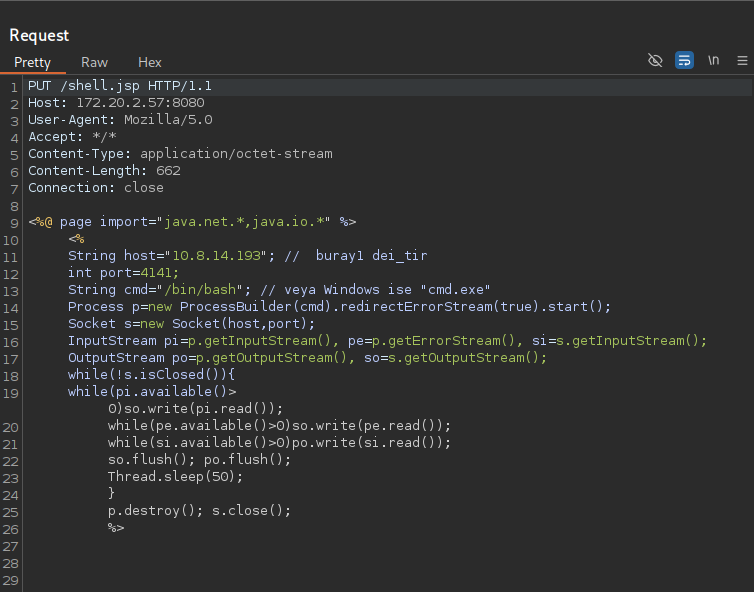

6) Manual Exploitation – JSP Reverse Shell

I preferred to exploit this vulnerability manually by uploading a .jsp reverse shell file via the PUT method.

---

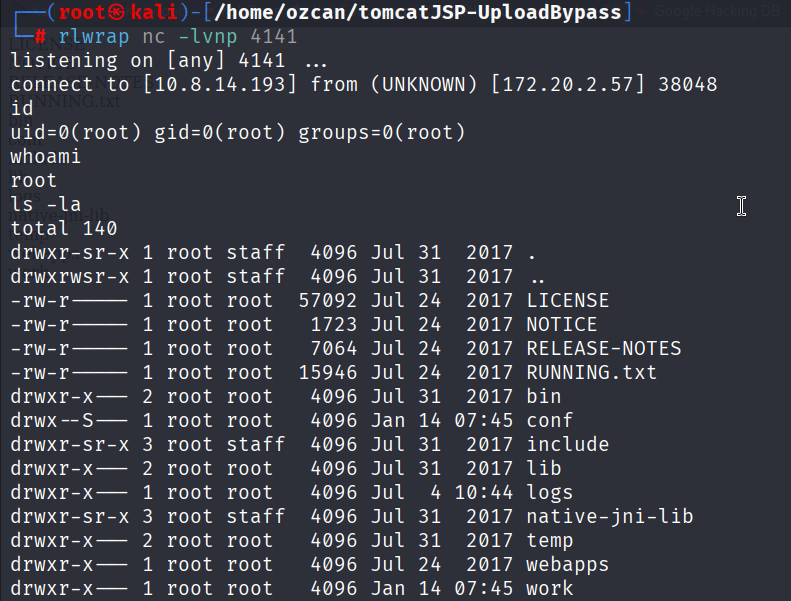

7) Shell Access

After sending the request, we set up a listener and visit http://172.20.2.57:8080/shell.jsp — successfully obtaining shell access.

---

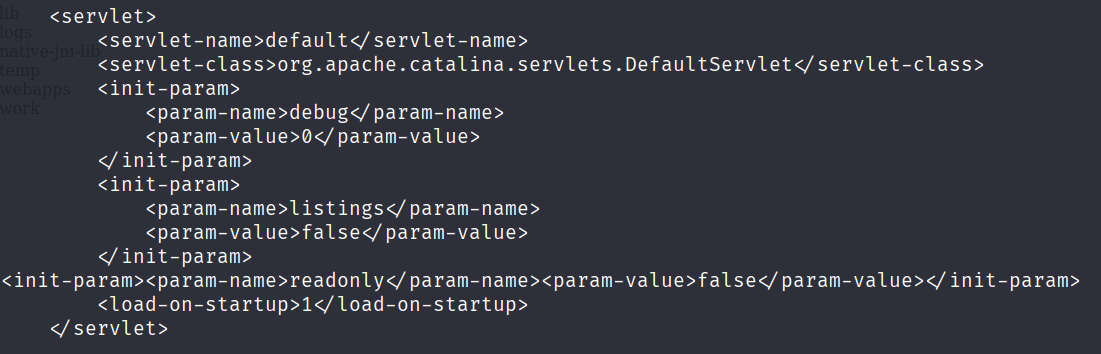

8) Configuration Confirmation

We confirm that the readonly parameter — the root cause of the vulnerability — is set to false with the following command:

grep -Ri -A1 '<param-name>readonly</param-name>' /usr/local/tomcat | grep -i '<param-value>false</param-value>' -B1

---

9) Verification with a Bash Script

We verify our findings using a small bash script that scans the entire tomcat directory and surfaces the relevant parameters.
